Đồng hồ đo lưu lượng làm bằng nhựa Acrylic F-550
F-550 Acrylic Flow Meter
- Model
- F-550
- Nhãn hiệu
- Blue White
- Xuất xứ
- USA
Cam kết chính hãng 100%, đầy đủ hóa đơn VAT
Cung cấp đầy đủ CO, CQ, tờ khai nhập khẩu
Giao hàng miễn phí các quận nội thành HCM
Acrylic Flow Meter
- Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
- Acceptable for outdoor installations (direct sunlight okay)
Technical Overview:
| GPM | .025 - 20 | Fahrenheit (°F) | 200 |
|---|---|---|---|
| LPM | .1 - 75 | Celsius (°C) | 93 |
| PSI | 250 | Body Material | Acrylic |
| Bar | 17.2 | Pipe Sizes | 1/4”, 3/8”, 3/4” and 1” male NPT 1/2” hose barb |
Features
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)

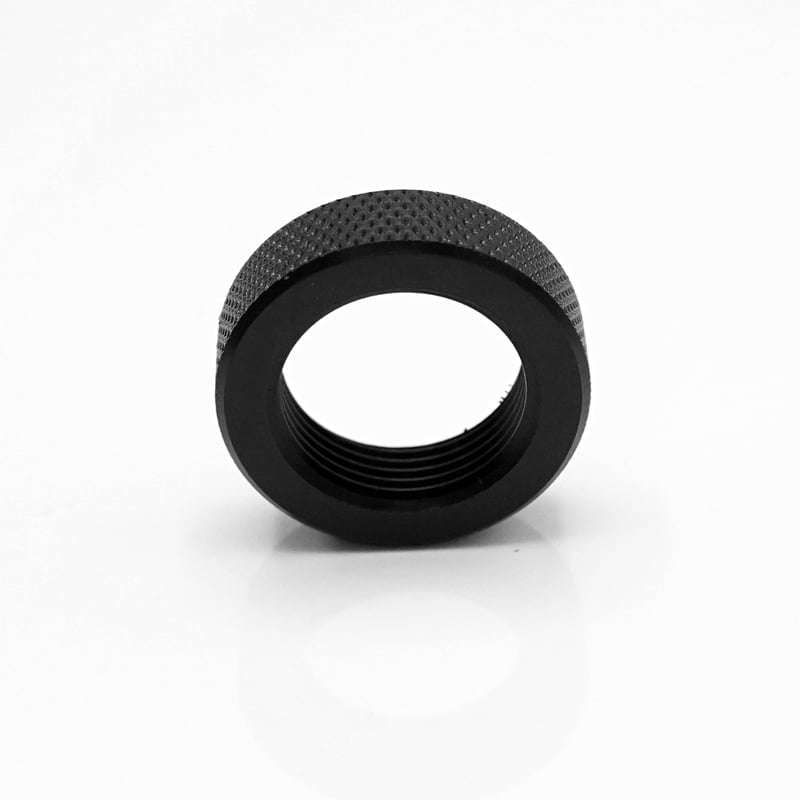

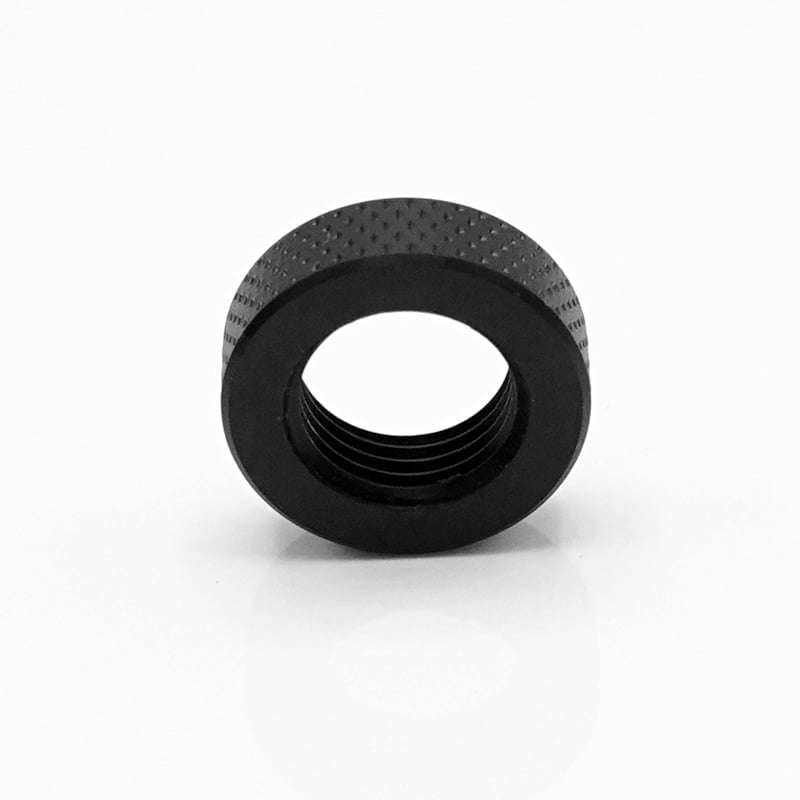

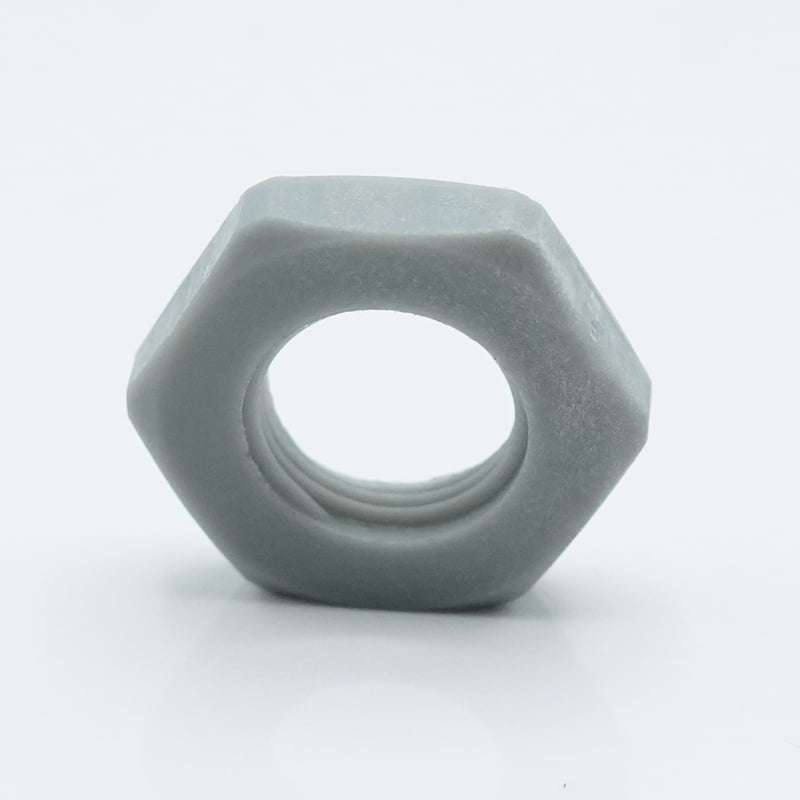

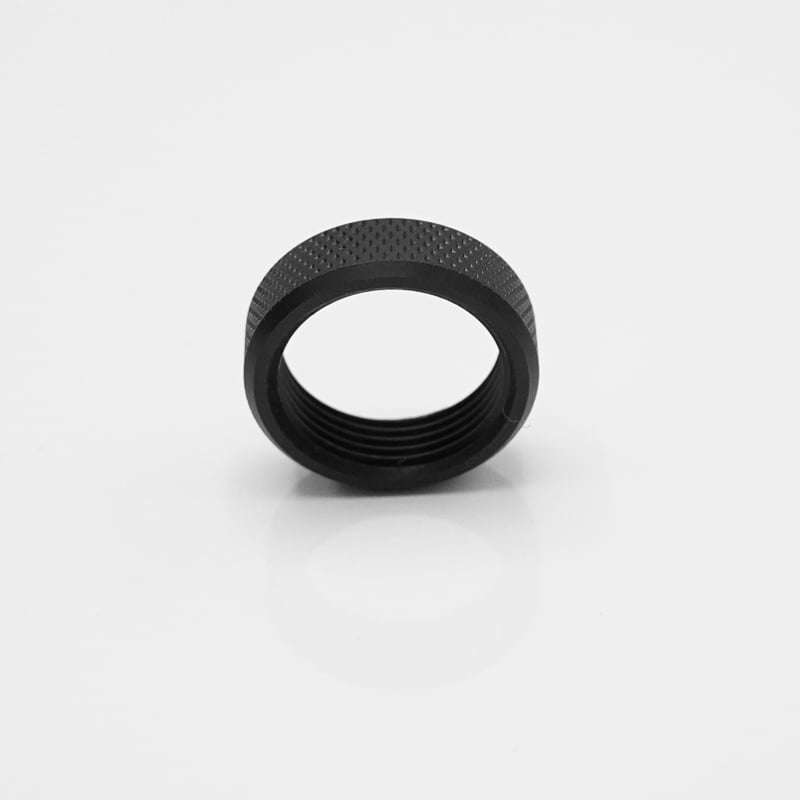

- Bulkhead nuts attach directly to inside panel.

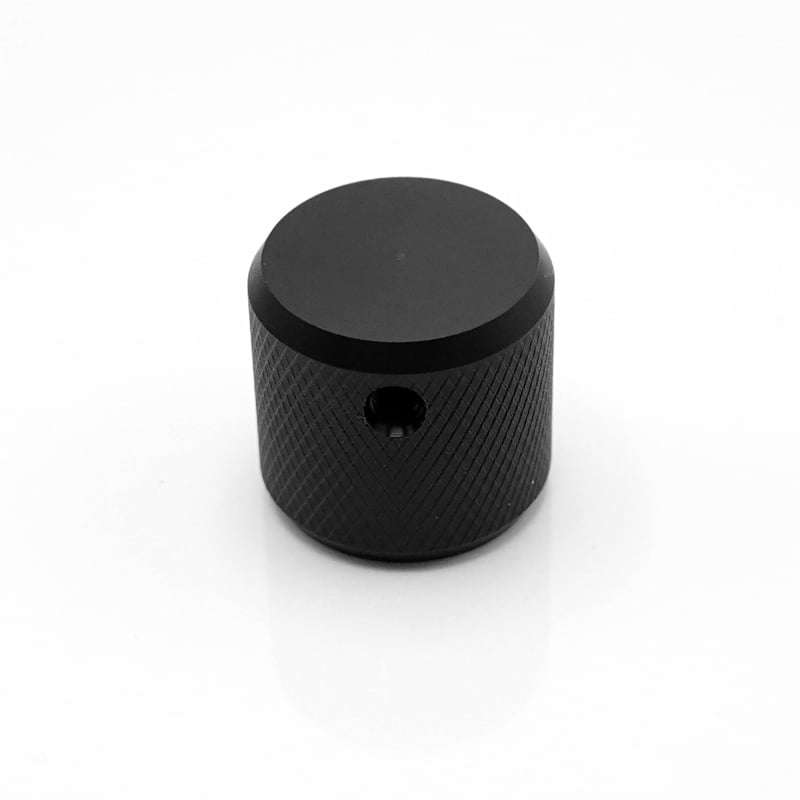

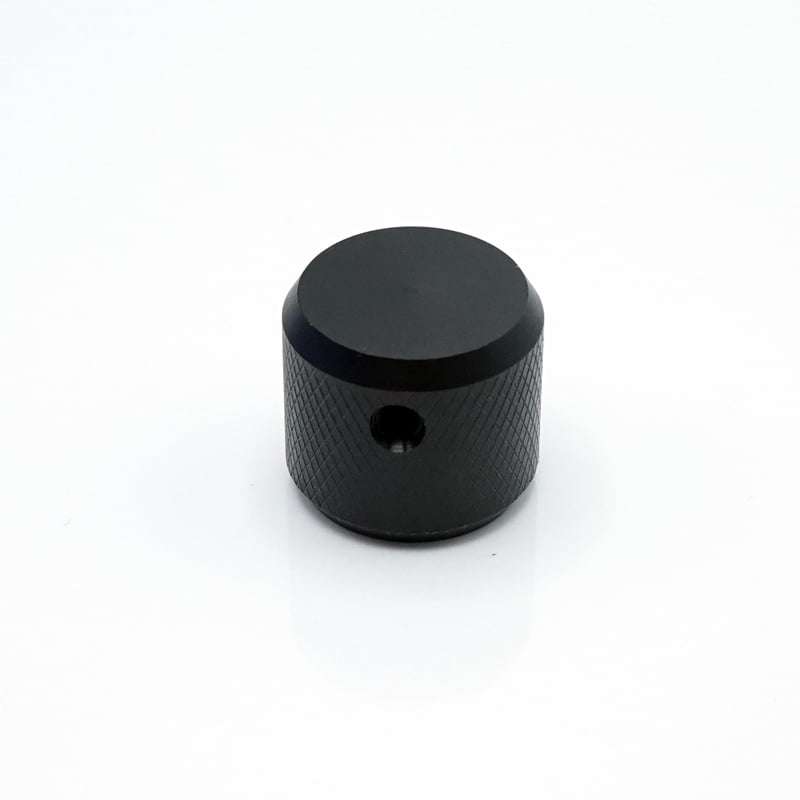

- Optional adjustable flow control: needle-type adjustment valve.
- Direct reading permanent scale.
- White back reflector for easy reading.
- 316 stainless, PTFE or Hastelloy floats and float guides.

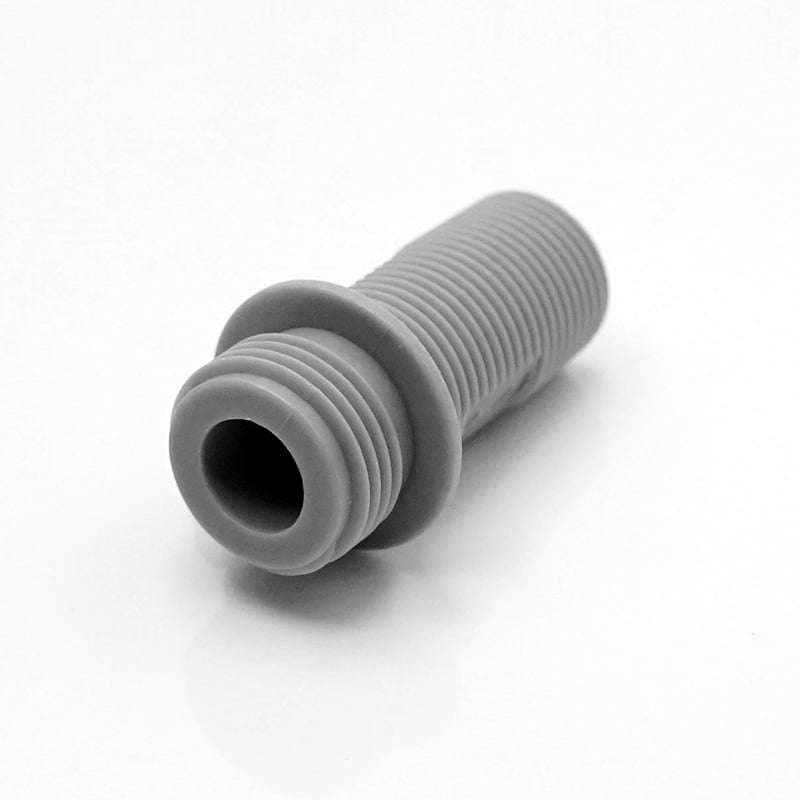

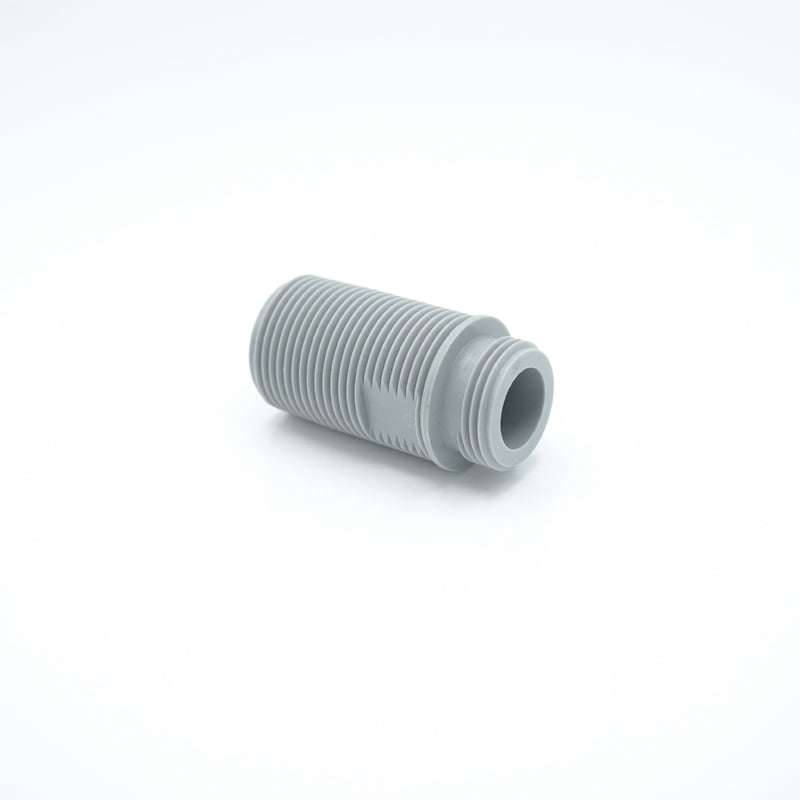

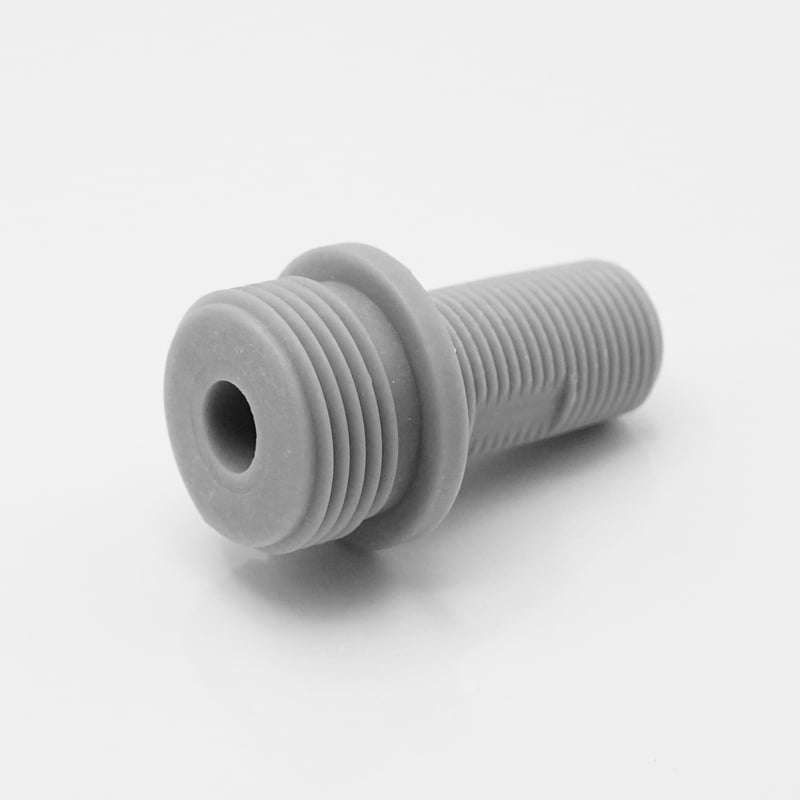

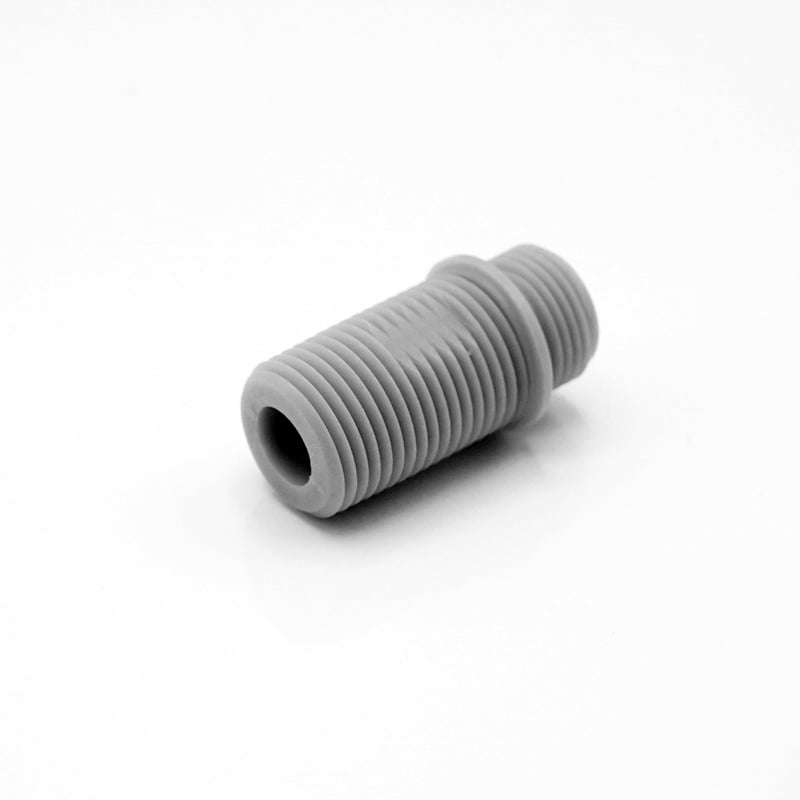

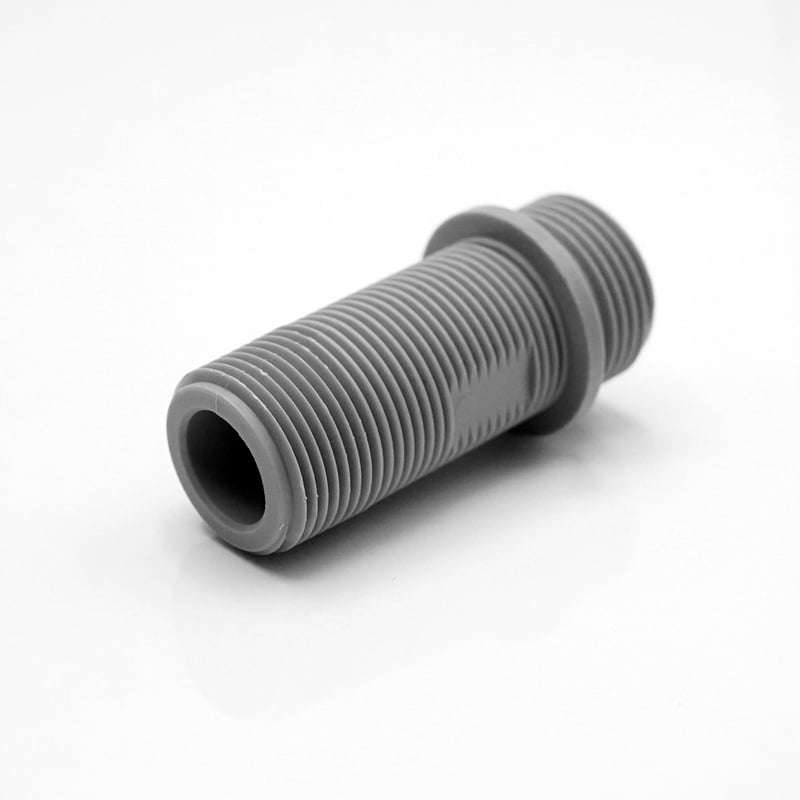

Adapter Options:
- 1/4″, 3/8″, 3/4″, 1″ Male NPT
- 1/2″ Hose Barb
What’s Included:
- Flowmeter x1
- Instruction Manual
Specifications
Max. Working Pressure:
- 250 psig (17.2 bar) @ 70° F (21° C)
Max. Fluid Temperature:
- 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
- +/- 5%
Meter Body Material:
- Machined Acrylic
Adapter Material:
- Polypropylene
Guide Rod Material:
- 316 SS or Hastelloy C-276

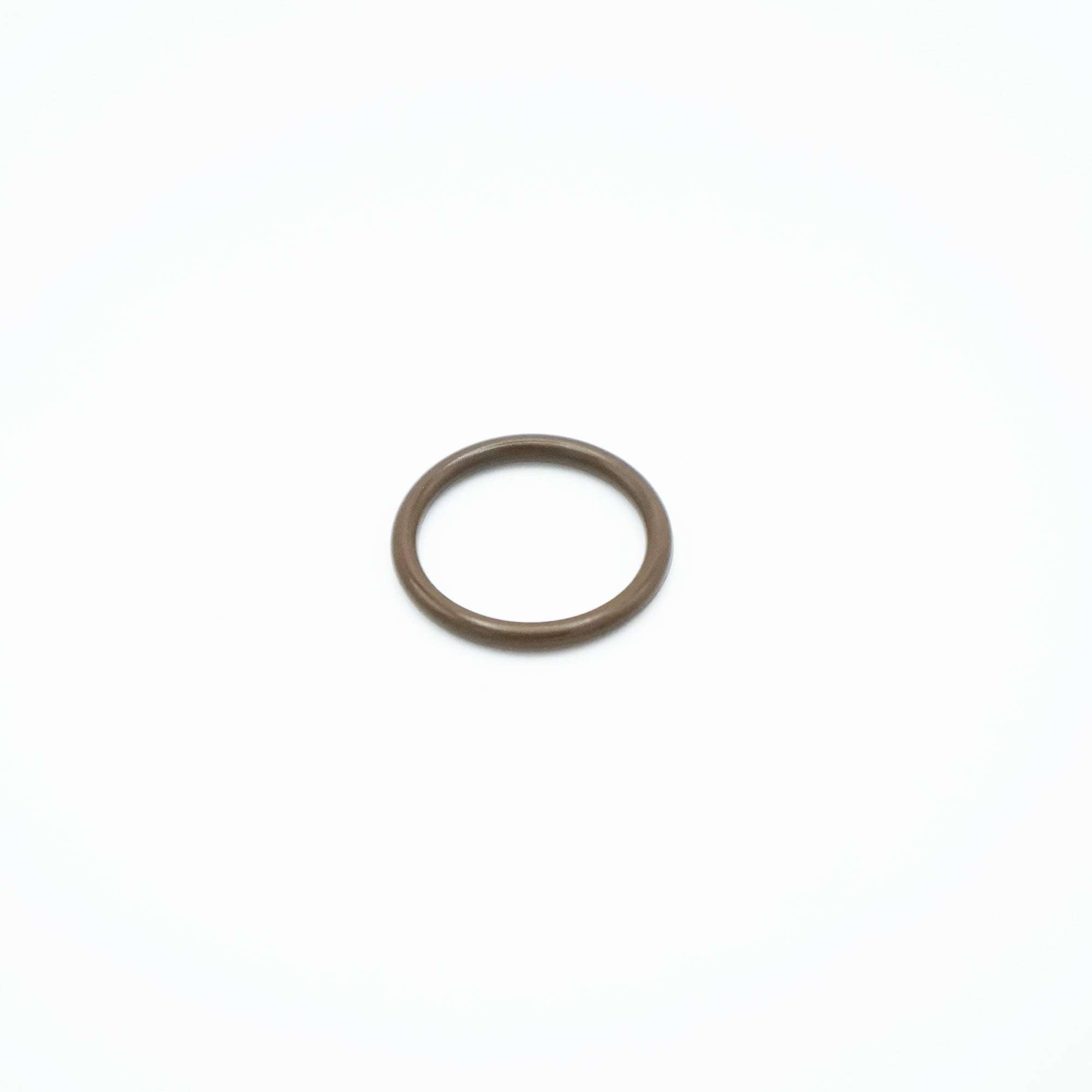

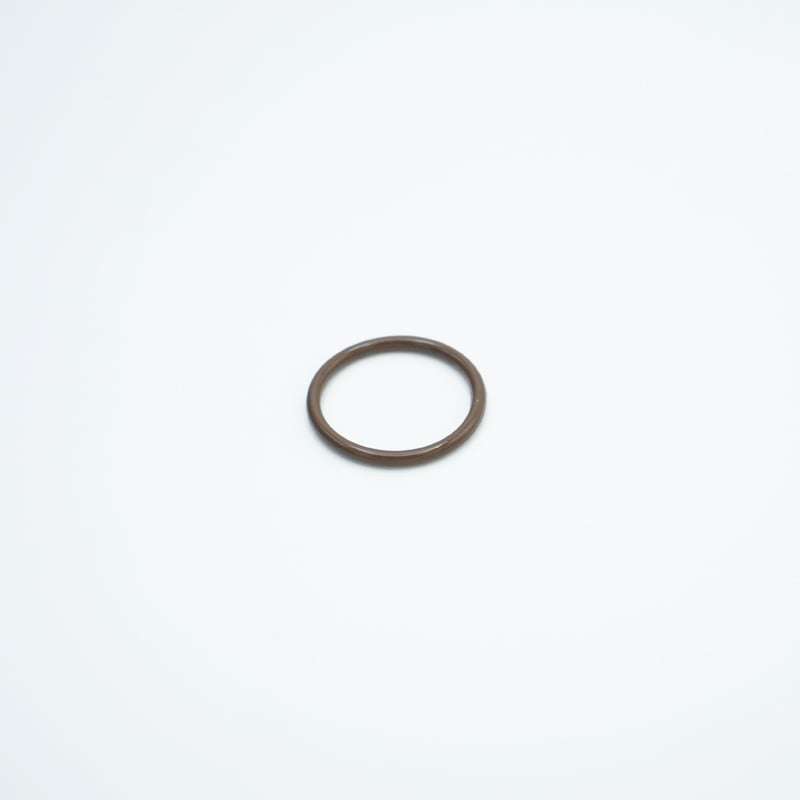

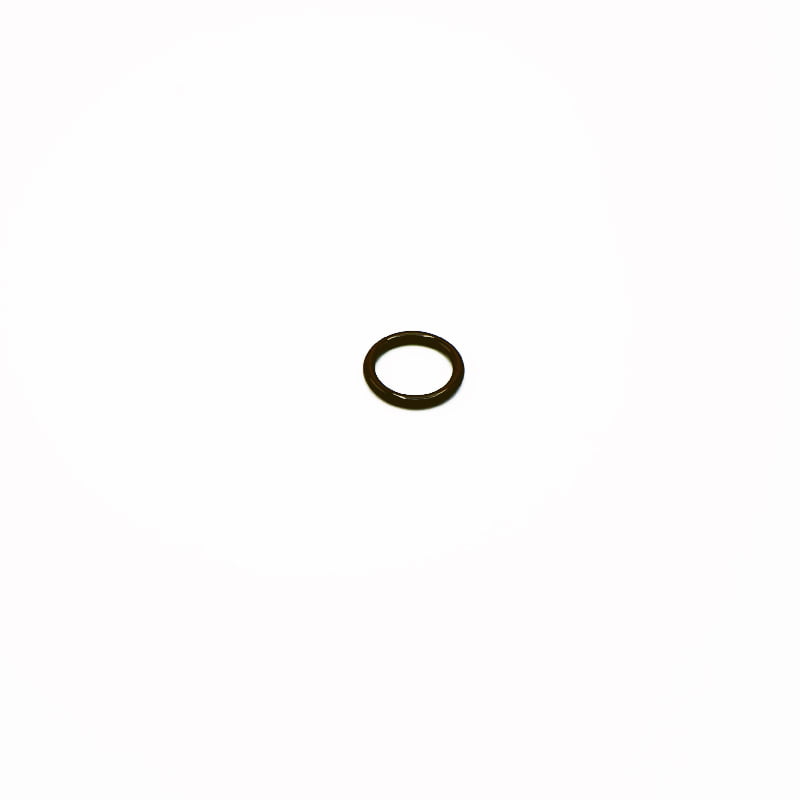

O-ring Material:
- FKM (Optional EP)
Approx. Shipping Weight:
- 2 lb. (0.907 kg)
Meter Ranges
Standard Series:
Equipped with 316 SS guide rod
| Non-Adjustable Model Number | Adjustable Valve Model Number | GPM | LPM | Adapter F/NPT | Float Material |
|---|---|---|---|---|---|
| F-55250L | F-55250LA | .025 to .250 | 0.1 to 1.0 | 1/4” | 316 SS |
| F-55375L | F-55375LA | 0.1 to 1.0 | .4 to 4 | 3/8” | 316 SS |
| F-55376L | F-55376LA | 0.2 to 2.0 | .75 to 7.5 | 3/8” | 316 SS |
| F-55500L | F-55500LA | 0.5 to 5.0 | 2.0 to 20.0 | 1/2” | 316 SS |
| F-55750L | F-55750LA | 1.0 to 10.0 | 4.0 to 40.0 | 3/4” | 316 SS |
| F-55005L | N/A | 1.0 to 5.0 | 3.0 to 18.0 | 1” | PTFE |
| F-55010L | F-55010LA | 1.0 to 10.0 | 4.0 to 40.0 | 1” | 316 SS |
| F-55015L | F-55015LA | 1.0 to 15.0 | 5.0 to 60.0 | 1” | 316 SS |
| F-55200L | F-55200LA | 2.0 to 20.0 | 7.5 to 75.0 | 1” | 316 SS |
K-Series:
Equipped with Hastelloy guide rod K-Series models are specially equipped for highly corrosive applications.
| Non-Adjustable Model Number | Adjustable Valve Model Number | GPM | LPM | Adapter F/NPT | Float Material |
|---|---|---|---|---|---|
| F-55250LK | F-55250LKA | .025 to .250 | 0.1 to 1.0 | 1/4” | Hastelloy |
| F-55375LK | F-55375LKA | 0.1 to 1.0 | .4 to 4 | 3/8” | Hastelloy |
| F-55376LK | F-55376LKA | 0.2 to 2.0 | .75 to 7.5 | 3/8” | Hastelloy |
| F-55500LK | F-55500LKA | 0.5 to 5.0 | 2.0 to 20.0 | 1/2” | Hastelloy |
| F-55750LK | F-55750LKA | 1.0 to 10.0 | 4.0 to 40.0 | 3/4” | Hastelloy |
| F-55005LK | N/A | 1.0 to 5.0 | 3.0 to 18.0 | 1” | PTFE |
| F-55010LK | F-55010LKA | 1.0 to 10.0 | 4.0 to 40.0 | 1” | Hastelloy |
| F-55015LK | F-55015LKA | 1.0 to 15.0 | 5.0 to 60.0 | 1” | Hastelloy |
| F-55200LK | F-55200LKA | 2.0 to 20.0 | 7.5 to 75.0 | 1” | Hastelloy |
Đồng hồ đo lưu lượng (flow meter) là một thiết bị được sử dụng để đo thể tích hoặc khối lượng của chất khí hoặc chất lỏng. Flow meter được gọi bằng nhiều tên, chẳng hạn như đồng hồ đo lưu lượng, chỉ báo lưu lượng, đồng hồ đo chất lỏng, cảm biến tốc độ dòng chảy,… tùy thuộc vào ngành công nghiệp cụ thể
