Đồng hồ đo lưu lượng làm bằng nhựa Polysulfone F-440

F-440 Polysulfone Flow Meter

Model: F-440
Nhãn hiệu: Blue White
Xuất xứ: USA

Cam kết chính hãng 100%, đầy đủ hóa đơn VAT

Cung cấp đầy đủ CO, CQ, tờ khai nhập khẩu

Giao hàng miễn phí các quận nội thành HCM

Đặt mua | 090 9988 288

Features

Polysulfone meter body resists high temperatures and pressures.
Compact size for tight installation spaces.
316SS or Hastelloy rod guided float.
Union connections for easy installation and maintenance.
Adjustable flow rate setpoint indicator.
Direct reading permanent scale.

What’s Included:

Flowmeter x1
Instruction Manual

Specifications

Max. working pressure:

175 PSI (10.3 bar) @ 70 F (21 C)

Full scale accuracy:

+/- 4%

Calibration fluid:

Water, specific gravity 1.0

Scale length:

2” (50mm) approx.

Environment:

Not for direct sunlight exposure.

Approximate shipping wt:

0.5 lb. (.23 kg)

Max. fluid temperature:

Standard units: 12 F (100 C) @ 0 PSI
Solarmeter units: 240 F (115 C) @ 0 PSI

Meter Ranges

Standard Series:

Equipped with 316 SS guide rod

IN-LINE MODEL NUMBER	PANEL MOUNT MODEL NUMBER	ADJUSTABLE MODEL NUMBER	PIPE SIZE (M/NPT)	GPM RANGE	LPM RANGE	FLOAT MATERIAL
F-44250L-6	F-44250LE-6	F-44250LA-6	3/8”	.025-.250	0.1–1.0	PVDF
F-44250L-8	F-44250LE-8	F-44250LA-8	1/2”	.025-.250	0.1–1.0	PVDF
F-44375L-6	F-44375LE-6	F-44375LA-6	3/8”	0.1–1.0	0.4–4.0	316SS
F-44375L-8	F-44375LE-8	F-44375LA-8	1/2”	0.1–1.0	0.4–4.0	316SS
F-44376L-6	F-44376LE-6	F-44376LA-6	3/8”	0.2–2.0	0.8–8.0	316SS
F-44376L-8	F-44376LE-8	F-44376LA-8	1/2”	0.2–2.0	0.8–8.0	316SS
F-44500L-6	F-44500LE-6	F-44500LA-6	3/8”	0.5–5.0	1.8–18.0	316SS
F-44500L-8	F-44500LE-8	F-44500LA-8	1/2”	0.5–5.0	1.8–18.0	316SS
F-44750L-8	F-44750LE-8	F-44750LA-8	1/2”	1.0–10.0	5.0–37.5	316SS
F-44750L-12	F-44750LE-12	F-44750LA-12	3/4”	1.0–10.0	5.0–37.5	316SS
				GPH	LPH
F-44330L-6	F-44330LE-6	F-44330LA-6	3/8”	3.0–30.0	10–110	PTFE
F-44330L-8	F-44330LE-8	F-44330LA-8	1/2”	3.0–30.0	10–110	PTFE
F-44560L-6	F-44560LE-6	F-44560LA-6	3/8”	5.0–60.0	20–220	316SS
F-44560L-8	F-44560LE-8	F-44560LA-8	1/2”	5.0–60.0	20–220	316SS

K-Series:

Equipped with Hastelloy guide rod K-Series models are specially equipped for highly corrosive applications.

IN-LINE MODEL NUMBER	PANEL MOUNT MODEL NUMBER	ADJUSTABLE MODEL NUMBER	PIPE SIZE (M/NPT)	GPM RANGE	LPM RANGE	FLOAT MATERIAL
F-44250LK-6	F-44250LKE-6	F-44250LKA-6	3/8”	.025-.250	0.1–1.0	PVDF
F-44250LK-8	F-44250LKE-8	F-44250LKA-8	1/2”	.025-.250	0.1–1.0	PVDF
F-44375LK-6	F-44375LKE-6	F-44375LKA-6	3/8”	0.1–1.0	0.4–4.0	PTFE
F-44375LK-8	F-44375LKE-8	F-44375LKA-8	1/2”	0.1–1.0	0.4–4.0	PTFE
F-44376LK-6	F-44376LKE-6	F-44376LKA-6	3/8”	0.2–2.0	0.8–8.0	Hastelloy
F-44376LK-8	F-44376LKE-8	F-44376LKA-8	1/2”	0.2–2.0	0.8–8.0	Hastelloy
F-44500LK-6	F-44500LKE-6	F-44500LKA-6	3/8”	0.5–5.0	1.8–18.0	Hastelloy
F-44500LK-8	F-44500LKE-8	F-44500LKA-8	1/2”	0.5–5.0	1.8–18.0	Hastelloy
F-44750LK-8	F-44750LKE-8	F-44750LKA-8	1/2”	1.0–10.0	5.0–37.5	Hastelloy
F-44750LK-12	F-44750LKE-12	F-44750LKA-12	3/4”	1.0–10.0	5.0–37.5	Hastelloy
				GPH	LPH
F-44330LK-6	F-44330LKE-6	F-44330LKA-6	3/8”	3.0–30.0	10–110	PTFE
F-44330LK-8	F-44330LKE-8	F-44330LKA-8	1/2”	3.0–30.0	10–110	PTFE
F-44560LK-6	F-44560LKE-6	F-44560LKA-6	3/8”	5.0–60.0	20–220	PTFE
F-44560LK-8	F-44560LKE-8	F-44560LKA-8	1/2”	5.0–60.0	20–220	PTFE

Solarmeter® Series:

Equipped with 316 SS guide rod Solarmeter models are available for in-line installations only.

Models with Brass Adapters

FEMALE NPT MODEL NUMBER	MALE NPT MODEL NUMBER	SWEAT MODEL NUMBER	PIPE SIZE	GPM RANGE	LPM RANGE	FLOAT MATERIAL
F-44375LB-7	N/A	N/A	3/8”	0.1–1.0	0.4–1.0	316SS
N/A	F-44375LB-9	F-44375LB-8	1/2”	0.1–1.0	0.4–4.0	316SS
F-44365LB-7	N/A	N/A	1/2”	0.2–1.0	0.8–8.0	316SS
N/A	F-44376LB-9	F-44376LB-8	1/2”	0.2–2.0	0.8–8.0	316SS
F-44500LB-7	N/A	N/A	3/8”	0.5–2.0	1.8–18.0	316SS
N/A	F-44500LB-9	F-44500LB-8	1/2”	0.5–5.0	1.8–18.0	316SS
N/A	F-44750LB-13	F-44750LB-12	3/4”	1.0–10.0	5.0–37.5	316SS
				GPH	LPH
F-44330LB-7	N/A	N/A	3/8”	3.0–30.0	10–110	PTFE
N/A	F-44330LB-9	F-44330LB-8	1/2”	3.0–30.0	10–110	PTFE
F-44560LB-7	N/A	N/A	3/8”	5.0–60.0	20–220	316SS
N/A	F-44560LB-9	F-44560LB-8	1/2”	5.0–60.0	20–220	316SS

mage	Name	Catalog Number

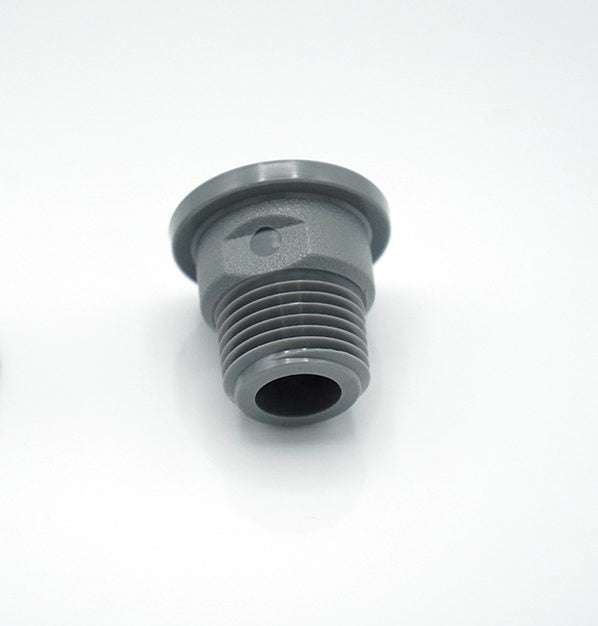

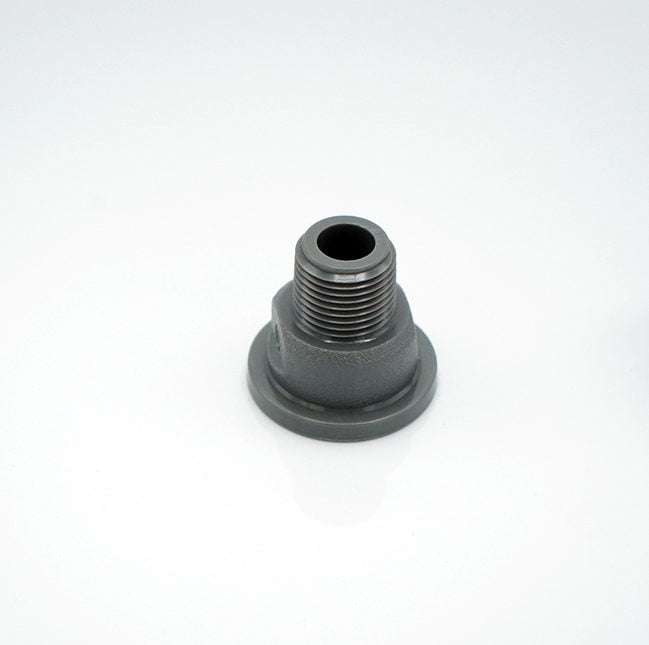

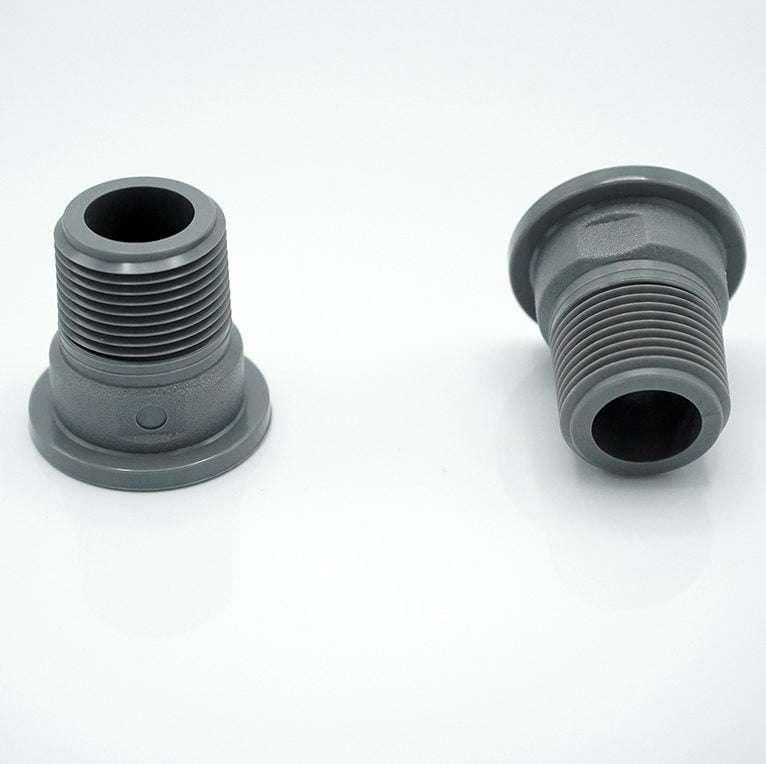

	ADAPTER F-440N/450N LG .75 M/NPT	F-44N09

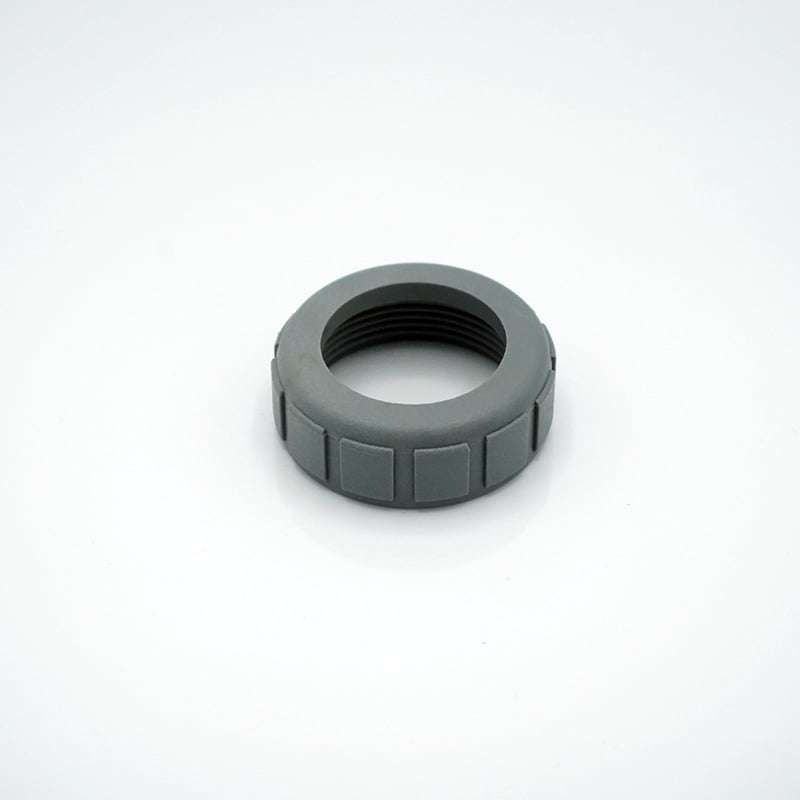

	NUT UNION F-450N .75 LG	F-44N06

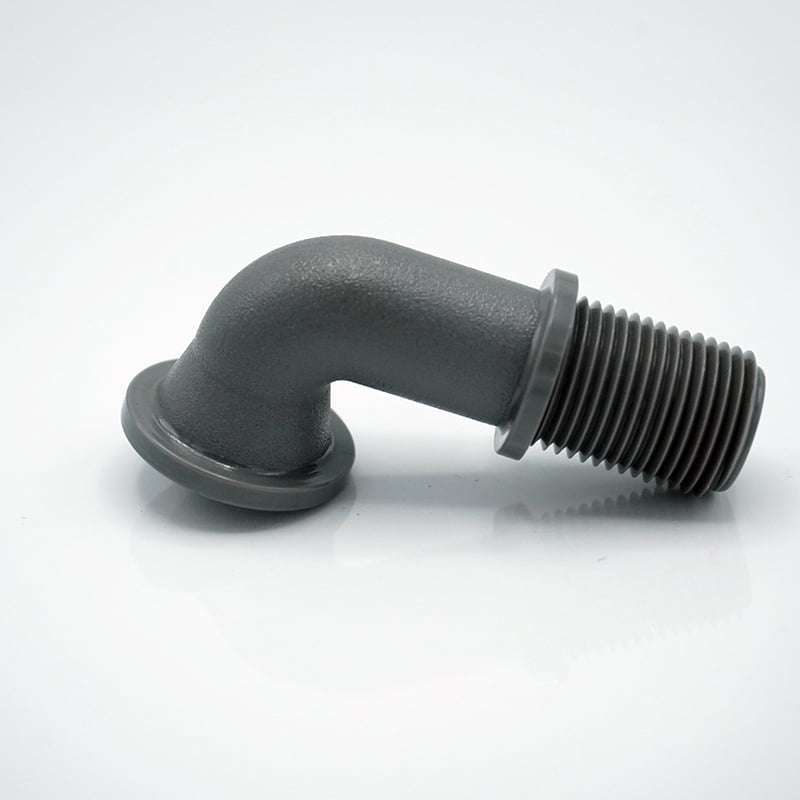

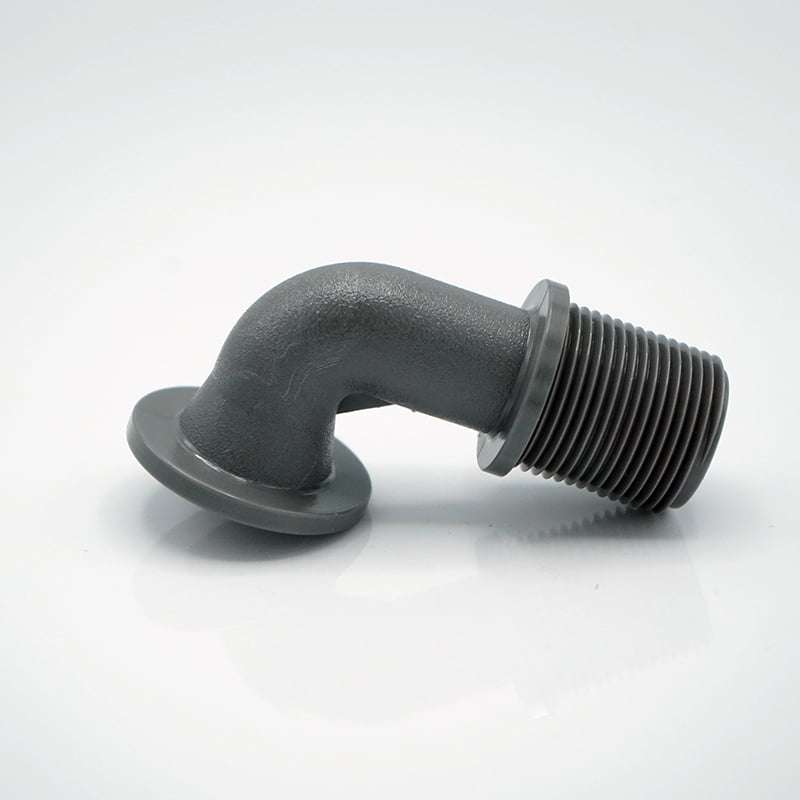

	ADAPTER ELBOW F-440N LG .75M/NPT	F-44N21

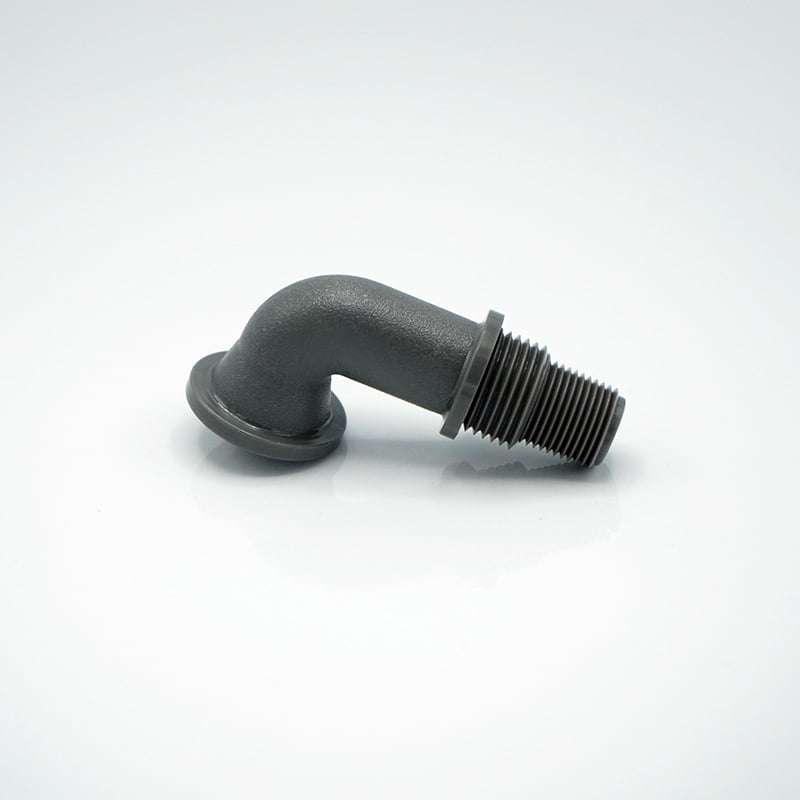

	ADAPTER ELBOW F-440N SM .50M/NPT	F-44N20
	F-4416	F-4416

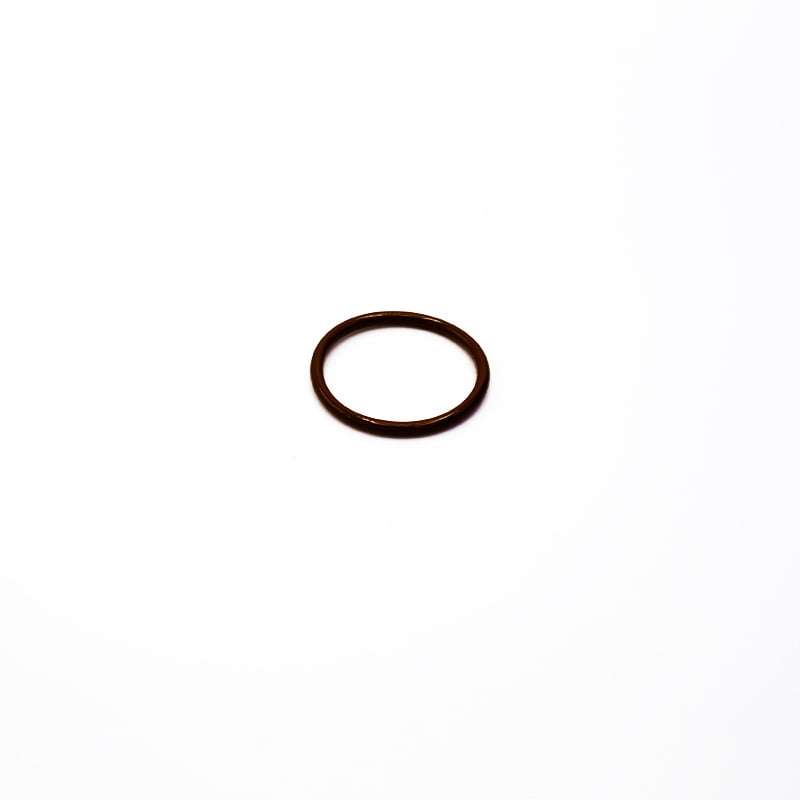

	O-RING 016 VIT	F-45042V
	O-RING 016 EP	90003-018
	O-RING 012 EP	C-602E
	O-RING 012 VIT	2-012V
	O-RING 122 EP	F-5026X
	INDICATOR FLOW F-440N/450N	F-45N043
	NEEDLE VALVE S/A LG .75M/NPT VIT	F-45N031-3
	NEEDLE VALVE S/A LG .50M/NPT VIT	F-45N031-2
	NEEDLE VALVE S/A LG .37M/NPT VIT	F-45N031-1
	WIRE HOLDER F-440N/450N LG PSF	F-45N019
	ADAPTER F-450N LG .50 M/NPT PSF	F-45N013
	WIRE HOLDER F-440N SM PSF	F-45N007
	NEEDLE VALVE SM .50 M/NPT VITON	F-44N40-2
	NEEDLE VALVE SM .37 M/NPT VIT	F-44N40-1
	ADAPTER ELBOW F-440N SM .37M/NPT	F-44N40
	ADAPTER F-440N LG .75 M/NPT BRASS	F-44N25
	ADAPTER F-440N SM .50 M/NPT BRASS	F-44N24
	ADAPTER F-440N LG .75 SWT BRASS	F-44N23
	GUIDE WIRE 440N .062 X 4.31 SS	F-44N15
	GUIDE WIRE 440N .062 X 3.65 HT	F-44N14H
	GUIDE WIRE 440N .062 X 3.65 SS	F-44N14

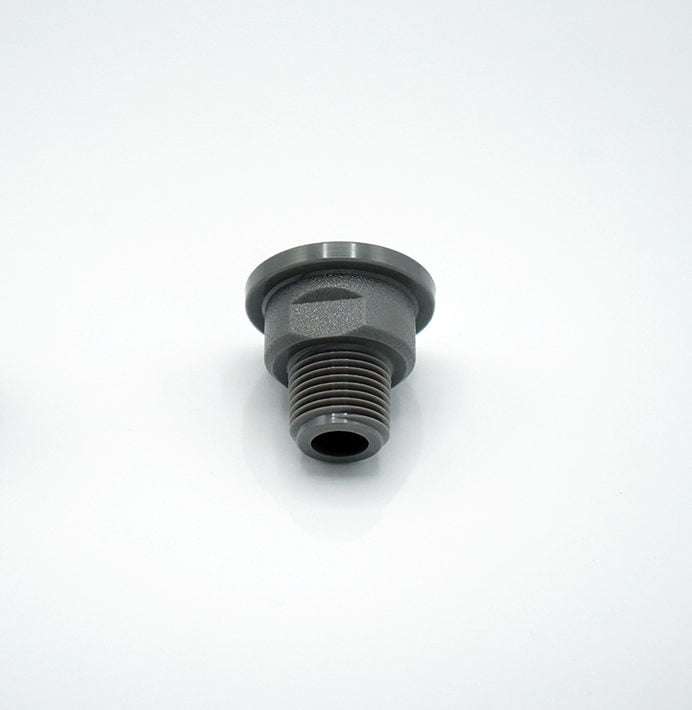

	ADAPTER F-440N SM .50 M/NPT PSF	F-44N08
	ADAPTER F-440N SM .38 M/NPT PSF	F-44N07
	ANODIZED NUT UNION GOLD F-450N .75	F-44N06AL
	NUT UNION F-440N .50 ALUM	76001-423
	NUT UNION F-440N .50 SM	F-44N05

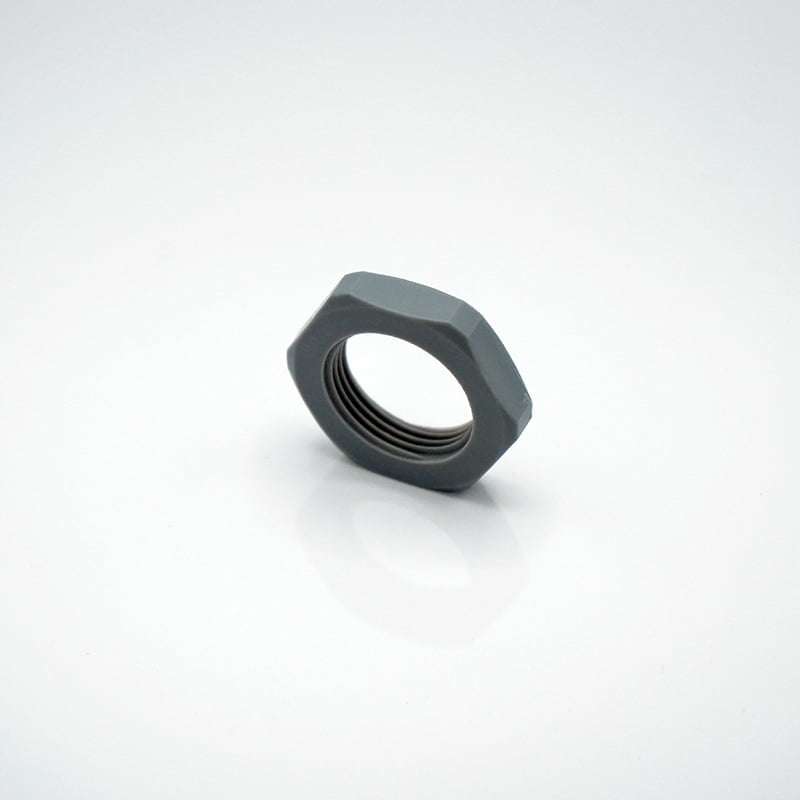

	LOCK NUT 3/4 POLYPRO	F-4428A
	LOCK NUT 1/2 POLYPRO	F-4427A
	O-RING 2-119 EP	90003-153
	O-RING 2-119 VIT	90003-152
	O-RING 122 VIT FKM 75	F-4411V

Đồng hồ đo lưu lượng (flow meter) là một thiết bị được sử dụng để đo thể tích hoặc khối lượng của chất khí hoặc chất lỏng. Flow meter được gọi bằng nhiều tên, chẳng hạn như đồng hồ đo lưu lượng, chỉ báo lưu lượng, đồng hồ đo chất lỏng, cảm biến tốc độ dòng chảy,… tùy thuộc vào ngành công nghiệp cụ thể
