Đồng hồ đo lưu lượng làm bằng nhựa Polysulfone F-460
F-460 Polysulfone Flow Meter
- Model
- F-460
- Nhãn hiệu
- Blue White
- Xuất xứ
- USA
Cam kết chính hãng 100%, đầy đủ hóa đơn VAT
Cung cấp đầy đủ CO, CQ, tờ khai nhập khẩu
Giao hàng miễn phí các quận nội thành HCM
| GPM | .1 - 5 | Fahrenheit (°F) | 210 |
|---|---|---|---|
| LPM | .4 - 20 | Celsius (°C) | 98 |
| PSI | 150 | Body Material | Polysulfone |
| Bar | 10.3 | Pipe Sizes | 1/2″ and 3/4″ female NPT fittings,1/2″ and 3/4″ socket fusion fittings |
Features
- For use in UltraPure applications
- No metal in the fluid path
- Rib guided float
- Polysulfone meter body resists high temperatures and pressures
- PTFE float and optional PVC, Polypropylene or PVDF adapters for corrosive applications
- Direct reading permanent scale
What’s Included:
- Flowmeter x1
- Instruction Manual
Specifications
Max. Working Pressure:
- 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature:
- PVDF adapters: 210˚F / 98˚C @ 0 PSI
- PVC adapters: 130˚F / 54˚C @ 0 PSI
Full Scale Accuracy:
- +/- 2 ½%
Meter Body Material:
- Polysulfone
Adapter Material:
- Female NPT (½” & ¾”): PVDF or PVC
- Socket Fusion (½” & ¾”): PVDF or Polypropylene
Union Nuts:
- Anodized Aluminum (optional PVC)
Float Material:
- PTFE
O-ring Material:
- FKM (Optional EP)
Max Pressure Drop:
- 2 PSI
Approx. Shipping Weight:
- 1 lb. (0.45 kg)
Meter Ranges
Models with F/NPT connections
Models for Liquid with PVC adapters
| Model Number | GPM | LPM | Adapter F/NPT | Float Material | Adapter Material |
|---|---|---|---|---|---|
| F-46010LX-08P | 0.1 to 1.2 | 0.4 to 4.4 | 1/2” | PTFE | PVC |
| F-46010LX-12P | 0.1 to 1.2 | 0.4 to 4.4 | 3/4” | PTFE | PVC |
| F-46020LX-08P | 0.2 to 2.0 | 0.8 to 8.0 | 1/2” | PTFE | PVC |
| F-46020LX-12P | 0.2 to 2.0 | 0.8 to 8.0 | 3/4” | PTFE | PVC |
| F-46030LX-08P | 0.3 to 3.0 | 1.0 to 11 | 1/2” | PTFE | PVC |
| F-46030LX-12P | 0.3 to 3.0 | 1.0 to 11 | 3/4” | PTFE | PVC |
| F-46050LX-08P | 0.5 to 5.0 | 2.0 to 20 | 1/2” | PTFE | PVC |
| F-46050LX-12P | 0.5 to 5.0 | 2.0 to 20 | 3/4” | PTFE | PVC |
Models with F/NPT connections
Models for Liquid with PVDF adapters
| Model Number | GPM | LPM | Adapter F/NPT | Float Material | Adapter Material |
|---|---|---|---|---|---|
| F-46010LX-08K | 0.1 to 1.2 | 0.4 to 4.4 | 1/2” | PTFE | PVDF |
| F-46010LX-12K | 0.1 to 1.2 | 0.4 to 4.4 | 3/4” | PTFE | PVDF |
| F-46020LX-08K | 0.2 to 2.0 | 0.8 to 8.0 | 1/2” | PTFE | PVDF |
| F-46020LX-12K | 0.2 to 2.0 | 0.8 to 8.0 | 3/4” | PTFE | PVDF |
| F-46030LX-08K | 0.3 to 3.0 | 1.0 to 11 | 1/2” | PTFE | PVDF |
| F-46030LX-12K | 0.3 to 3.0 | 1.0 to 11 | 3/4” | PTFE | PVDF |
| F-46050LX-08K | 0.5 to 5.0 | 2.0 to 20 | 1/2” | PTFE | PVDF |
| F-46050LX-12K | 0.5 to 5.0 | 2.0 to 20 | 3/4” | PTFE | PVDF |
Models with Socket Fusion connections
Models for Liquid with Polypropylene adapters
| Model Number | GPM | LPM | Adapter F/NPT | Float Material | Adapter Material |
|---|---|---|---|---|---|
| F-46010LX-09G | 0.1 to 1.2 | 0.4 to 4.4 | 1/2” | PTFE | Polypropylene |
| F-46010LX-13G | 0.1 to 1.2 | 0.4 to 4.4 | 3/4” | PTFE | Polypropylene |
| F-46020LX-09G | 0.2 to 2.0 | 0.8 to 8.0 | 1/2” | PTFE | Polypropylene |
| F-46020LX-13G | 0.2 to 2.0 | 0.8 to 8.0 | 3/4” | PTFE | Polypropylene |
| F-46030LX-09G | 0.3 to 3.0 | 1.0 to 11 | 1/2” | PTFE | Polypropylene |
| F-46030LX-13G | 0.3 to 3.0 | 1.0 to 11 | 3/4” | PTFE | Polypropylene |
| F-46050LX-09G | 0.5 to 5.0 | 2.0 to 20 | 1/2” | PTFE | Polypropylene |
| F-46050LX-13G | 0.5 to 5.0 | 2.0 to 20 | 3/4” | PTFE | Polypropylene |
Models with Socket Fusion connections
Models for Liquid with PVDF adapters
| Model Number | GPM | LPM | Adapter F/NPT | Float Material | Adapter Material |
|---|---|---|---|---|---|
| F-46010LX-09K | 0.1 to 1.2 | 0.4 to 4.4 | 1/2” | PTFE | PVDF |
| F-46010LX-13K | 0.1 to 1.2 | 0.4 to 4.4 | 3/4” | PTFE | PVDF |
| F-46020LX-09K | 0.2 to 2.0 | 0.8 to 8.0 | 1/2” | PTFE | PVDF |
| F-46020LX-13K | 0.2 to 2.0 | 0.8 to 8.0 | 3/4” | PTFE | PVDF |
| F-46030LX-09K | 0.3 to 3.0 | 1.0 to 11 | 1/2” | PTFE | PVDF |
| F-46030LX-13K | 0.3 to 3.0 | 1.0 to 11 | 3/4” | PTFE | PVDF |
| F-46050LX-09K | 0.5 to 5.0 | 2.0 to 20 | 1/2” | PTFE | PVDF |
| F-46050LX-13K | 0.5 to 5.0 | 2.0 to 20 | 3/4” | PTFE | PVDF |

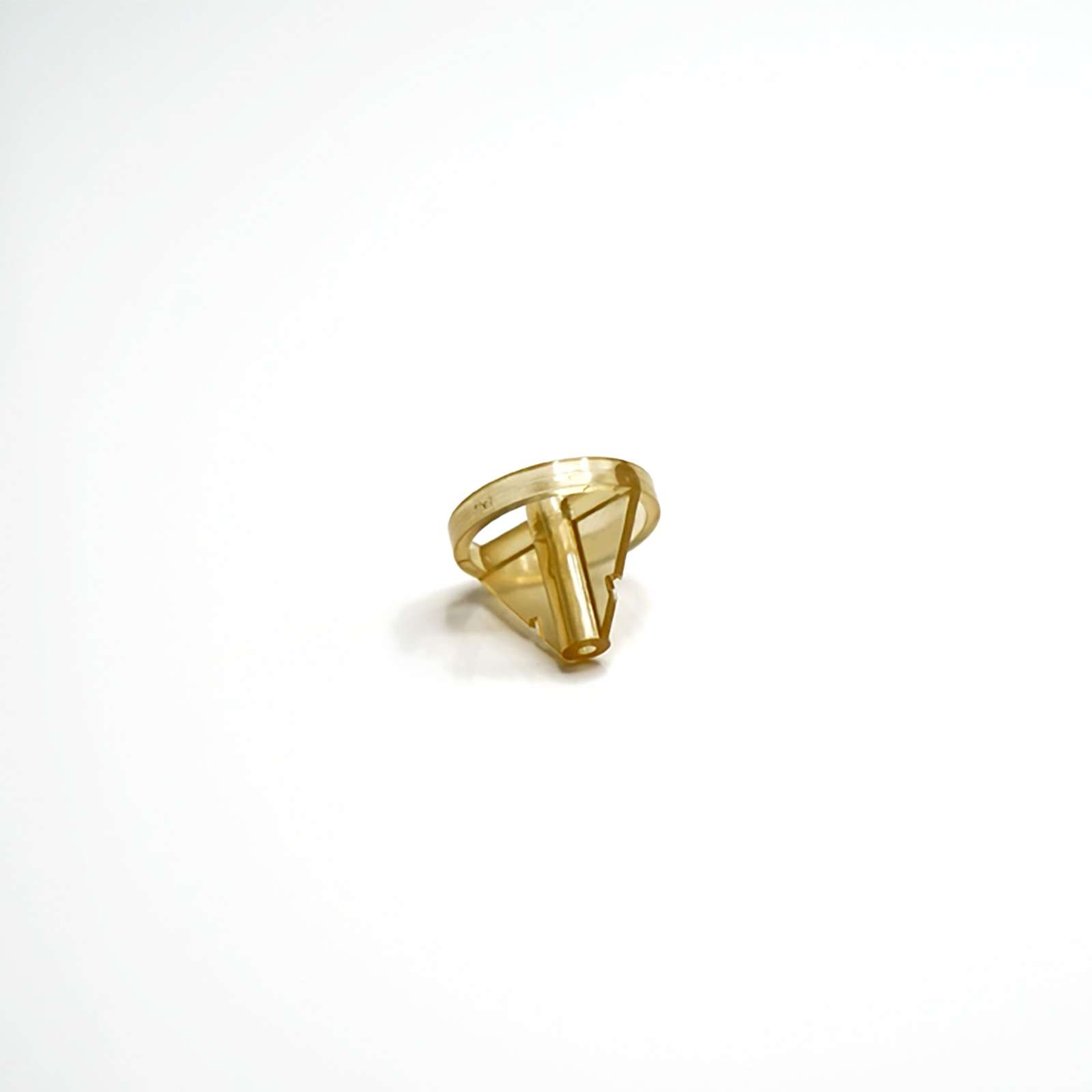

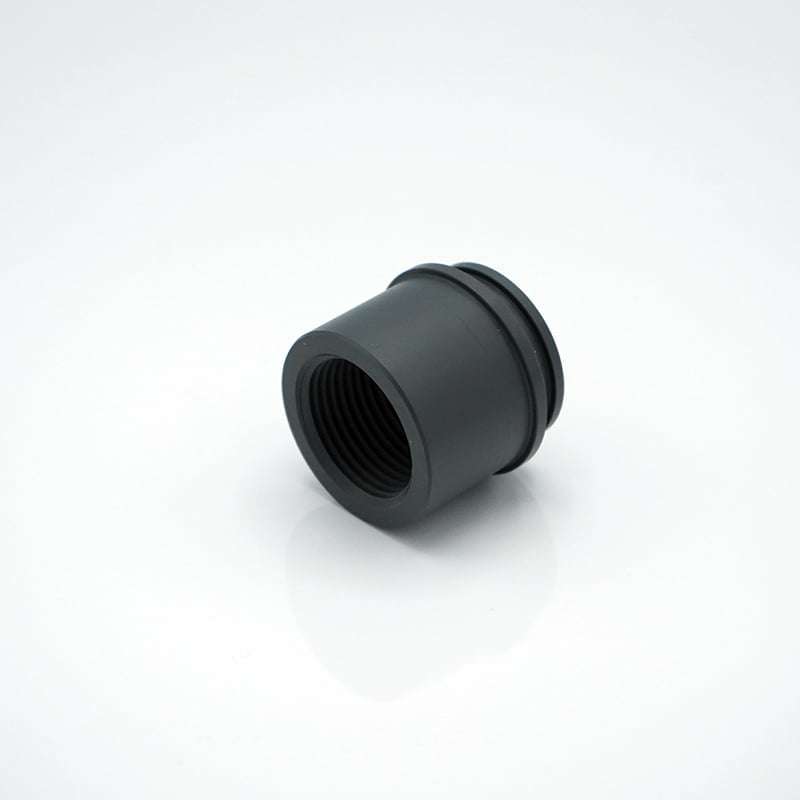

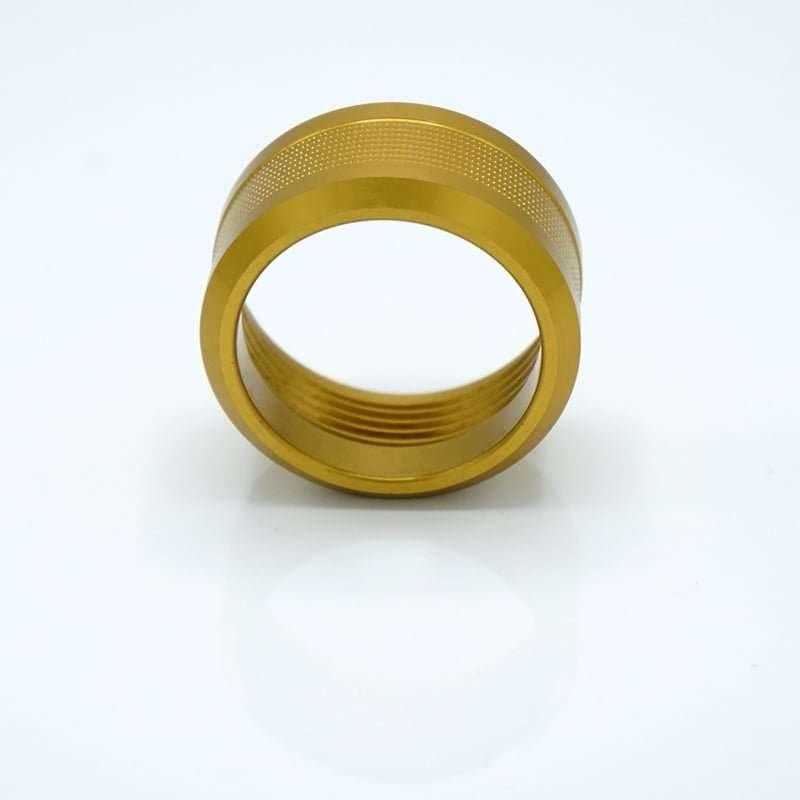

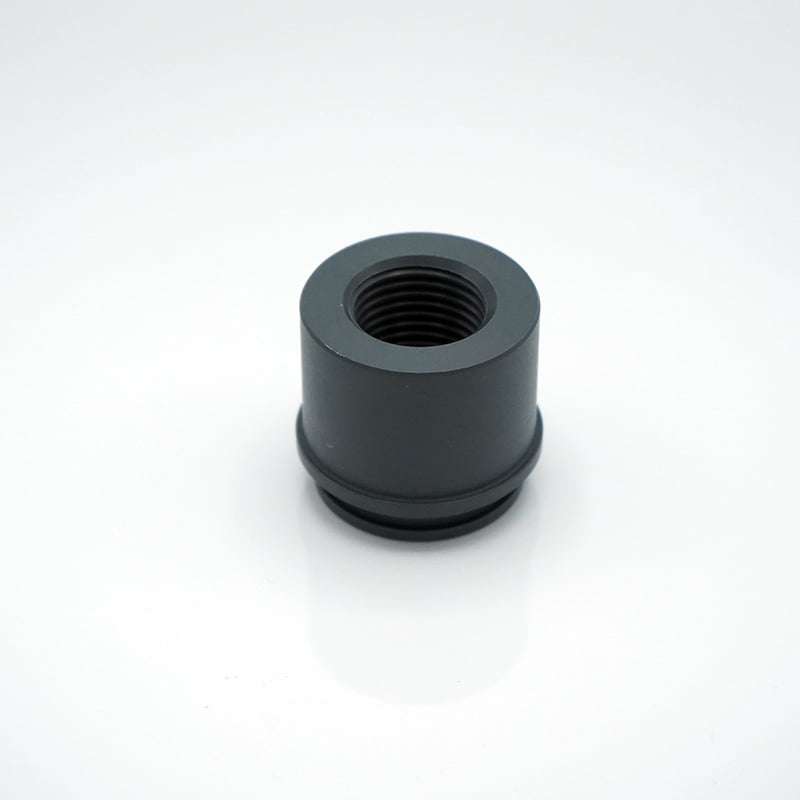

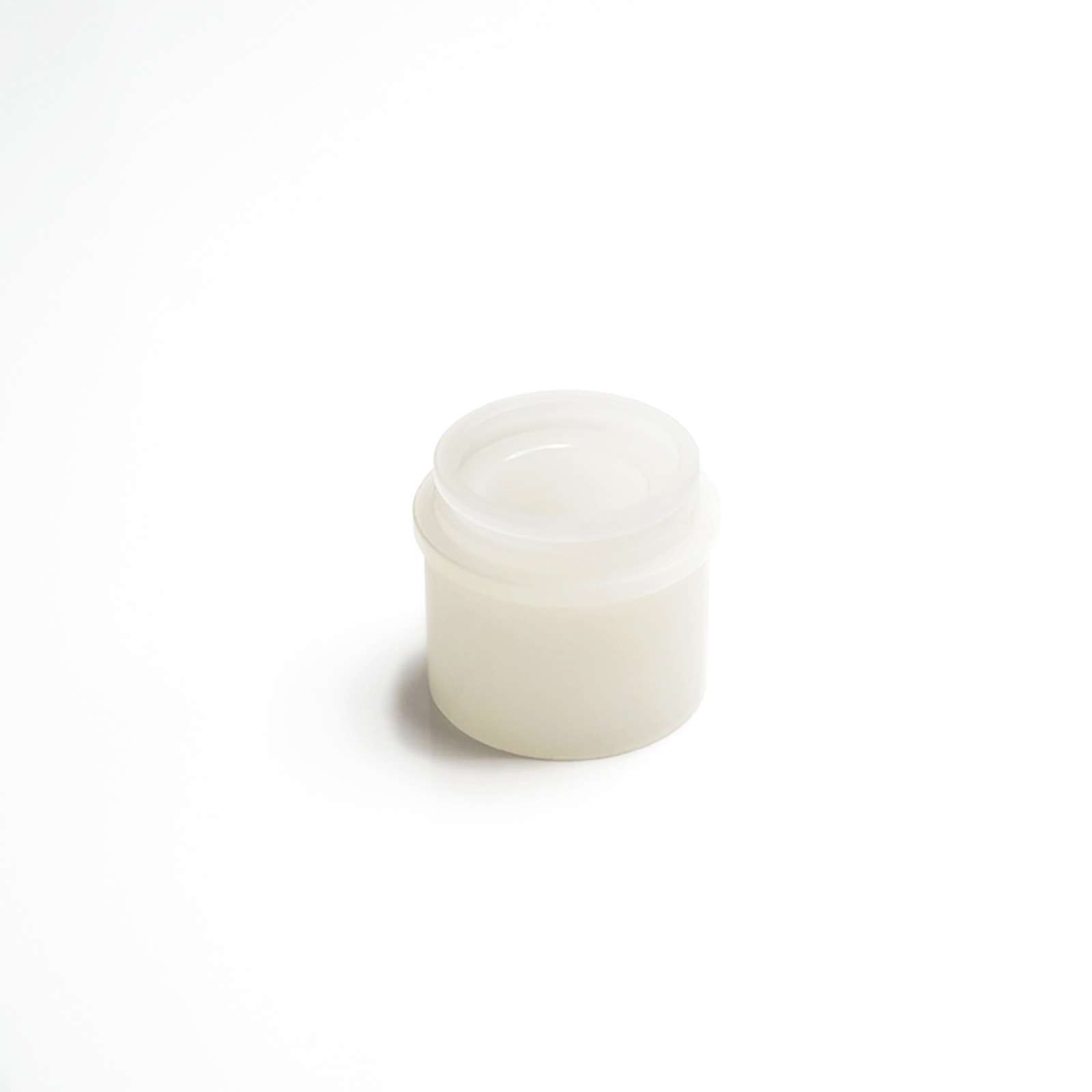

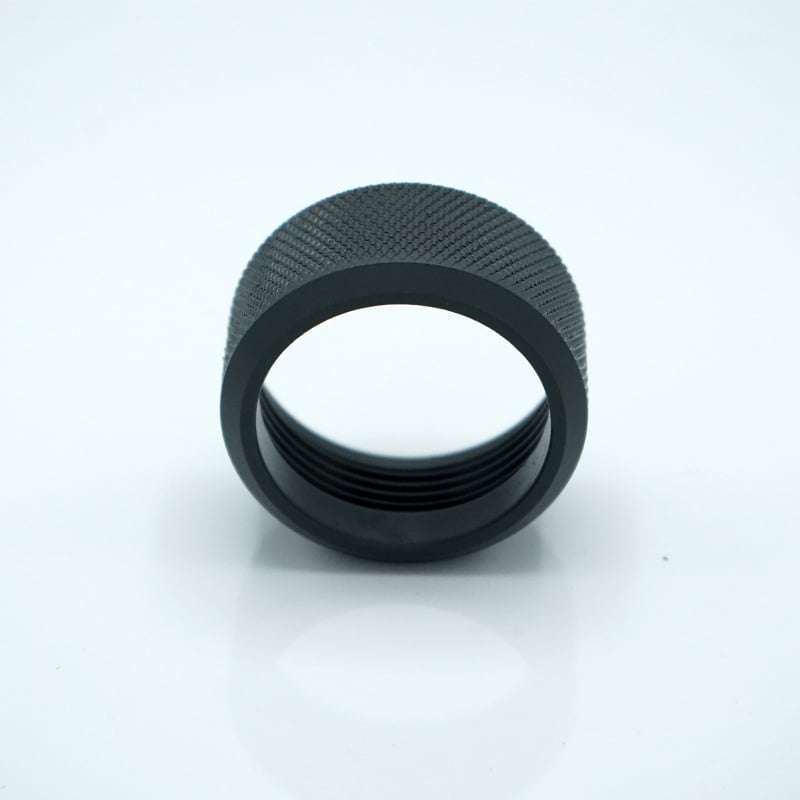

Replacement Parts
Đồng hồ đo lưu lượng (flow meter) là một thiết bị được sử dụng để đo thể tích hoặc khối lượng của chất khí hoặc chất lỏng. Flow meter được gọi bằng nhiều tên, chẳng hạn như đồng hồ đo lưu lượng, chỉ báo lưu lượng, đồng hồ đo chất lỏng, cảm biến tốc độ dòng chảy,… tùy thuộc vào ngành công nghiệp cụ thể
Liên hệ để nhận báo giá Đồng hồ đo lưu lượng làm bằng nhựa Polysulfone F-460: Hotline 090.9988.288 hoặc 07.08.09.2356
