Đồng hồ đo lưu lượng làm bằng nhựa Polysulfone F-452
F-452 Polysulfone Flow Meter
- Model
- F-452
- Nhãn hiệu
- Blue White
- Xuất xứ
- USA
| GPM | 2 - 175 | Fahrenheit (°F) | 200 |
|---|---|---|---|
| LPM | 8 - 675 | Celsius (°C) | 93 |
| PSI | 150 | Body Material | Polysulfone |
| Bar | 10.3 | Pipe Sizes | 2” F/NPT, 2” socket fusion |
Features
- Polysulfone meter body resists high temperatures and pressures.
- 316SS or Hastelloy rod guided float.
- Direct reading permanent scale.
- Adapters and unions engineered for increased protection from misalignment and vibration.
- Custom calibrations, materials, and Private labeling available.
- Very low pressure drop.
- Not recommended for direct sunlight.
- In-Line (vertical) mount only.
- Optional polycarbonate splash shield
What’s Included:
- Flowmeter x1
- Instruction Manual
Specifications
Max. Working Pressure:
- 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature:
- 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
- +/- 2%
Meter Body Material:
- Polysulfone

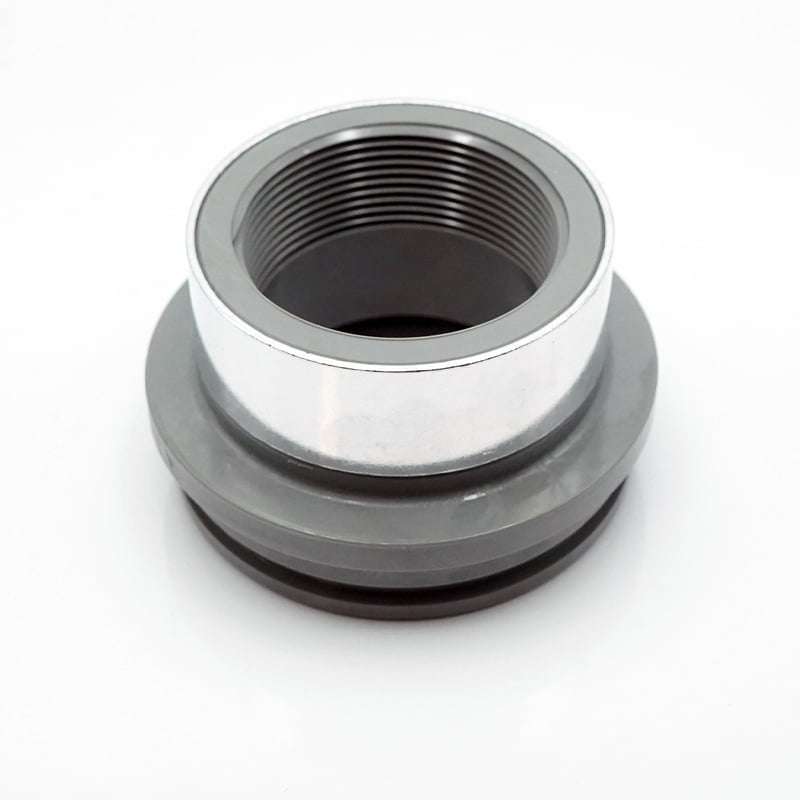

Adapter Material:
- 2″ F/NPT: Polysulfone
- 2″ Socket Fusion: Polypropylene or PVDF

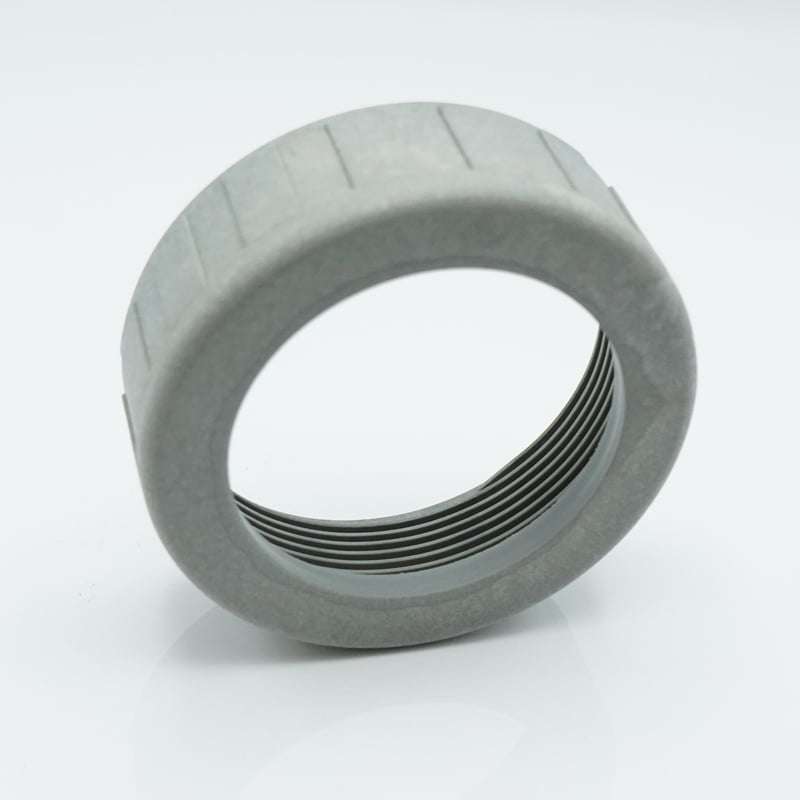

Union Nuts:
- Glass fiber reinforced Nylon
Guide Rod Material:
- 316 SS or Hastelloy C-276

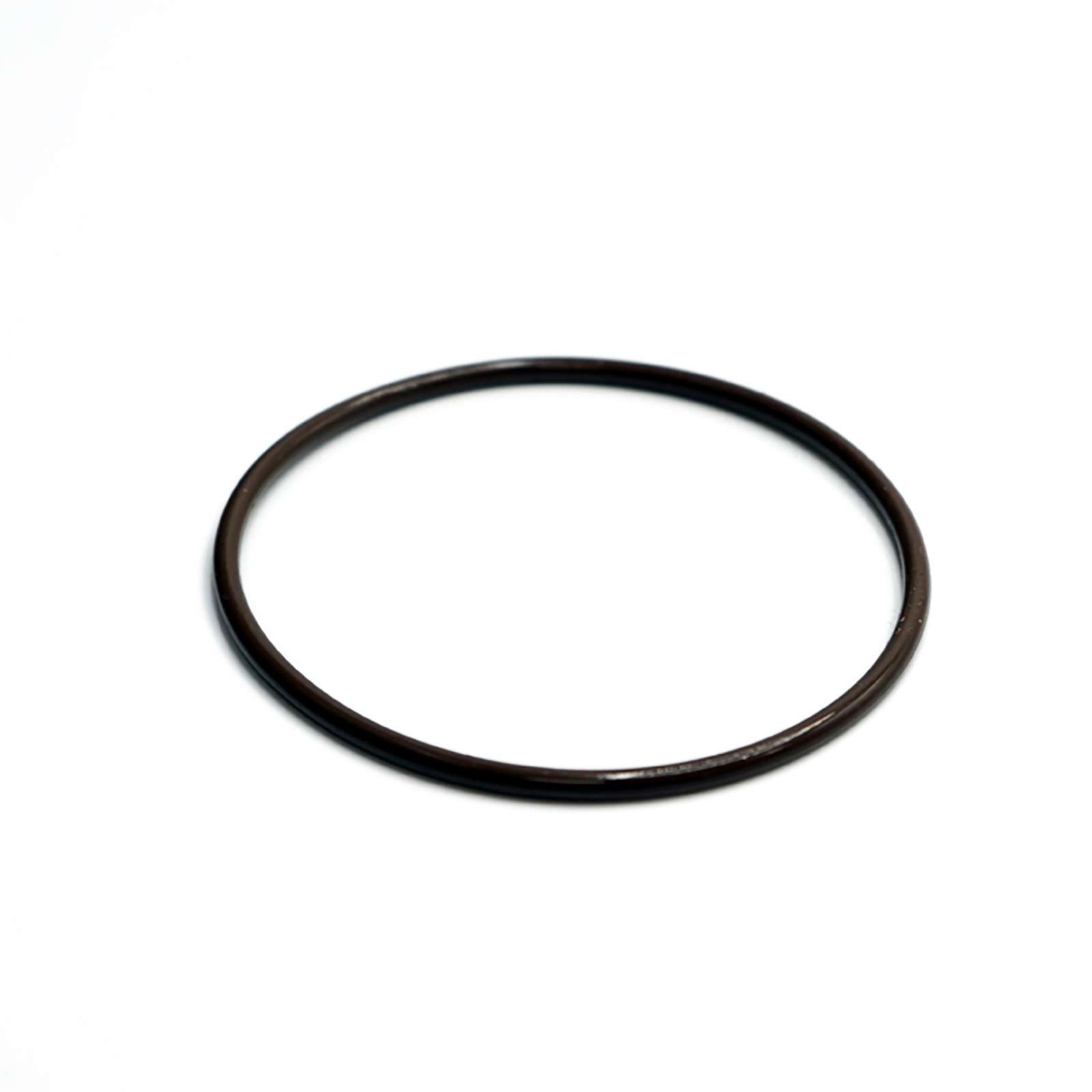

O-ring Material:
- FKM (Optional EP)
Max Pressure Drop:
- 2 PSI
Approx. Shipping Weight:
- 5 lb. (2.27 kg)
Meter Ranges
Standard Series:
Equipped with 316 SS guide rod
| Model Number | GPM | LPM | Float Material | Guiderod Material |
|---|---|---|---|---|
| F-452020LHN | 2 to 20 | 8 to 78 | PTFE | 316 ss |
| F-452060LHN | 6 to 60 | 30 to 230 | 316 ss | 316 ss |
| F-452080LHN | 8 to 80 | 40 to 300 | 316 ss | 316 ss |
| F-452100LHN | 6 to 100 | 20 to 380 | 316 ss | 316 ss |
| F-452130LHN | 20 to 130 | 80 to 500 | 316 ss | 316 ss |
| F-452175LHN | 25 to 175 | 100 to 675 | 316 ss | 316 ss |
Standard Series:
Equipped with 316 SS guide rod And Polycarbonate splash shield
| Model Number | GPM | LPM | Float Material | Guiderod Material |
|---|---|---|---|---|
| F-452020LHNC | 2 to 20 | 8 to 78 | PTFE | 316 ss |
| F-452060LHNC | 6 to 60 | 30 to 230 | 316 ss | 316 ss |
| F-452080LHNC | 8 to 80 | 40 to 300 | 316 ss | 316 ss |
| F-452100LHNC | 6 to 100 | 20 to 380 | 316 ss | 316 ss |
| F-452130LHNC | 20 to 130 | 80 to 500 | 316 ss | 316 ss |
| F-452175LHNC | 25 to 175 | 100 to 675 | 316 ss | 316 ss |
K-Series:
Equipped with Hastelloy guide rod K-Series models are specially equipped for highly corrosive applications.
| Model Number | GPM | LPM | Float Material | Guiderod Material |
|---|---|---|---|---|
| F-452020LHKN | 2 to 20 | 8 to 78 | PTFE | Hastelloy |
| F-452060LHKN | 6 to 60 | 30 to 230 | Hastelloy | Hastelloy |
| F-452080LHKN | 8 to 80 | 40 to 300 | Hastelloy | Hastelloy |
| F-452100LHKN | 6 to 100 | 20 to 380 | Hastelloy | Hastelloy |
| F-452130LHKN | 20 to 130 | 80 to 500 | Hastelloy | Hastelloy |
| F-452175LHKN | 25 to 175 | 100 to 675 | Hastelloy | Hastelloy |
K-Series:
Equipped with Hastelloy guide rod And Polycarbonate splash shield K-Series models are specially equipped for highly corrosive applications.
| Model Number | GPM | LPM | Float Material | Guiderod Material |
|---|---|---|---|---|
| F-452020LHKNC | 2 to 20 | 8 to 78 | PTFE | Hastelloy |
| F-452060LHKNC | 6 to 60 | 30 to 230 | Hastelloy | Hastelloy |
| F-452080LHKNC | 8 to 80 | 40 to 300 | Hastelloy | Hastelloy |
| F-452100LHKNC | 6 to 100 | 20 to 380 | Hastelloy | Hastelloy |
| F-452130LHKNC | 20 to 130 | 80 to 500 | Hastelloy | Hastelloy |
| F-452175LHKNC | 25 to 175 | 100 to 675 | Hastelloy | Hastelloy |
Đồng hồ đo lưu lượng (flow meter) là một thiết bị được sử dụng để đo thể tích hoặc khối lượng của chất khí hoặc chất lỏng. Flow meter được gọi bằng nhiều tên, chẳng hạn như đồng hồ đo lưu lượng, chỉ báo lưu lượng, đồng hồ đo chất lỏng, cảm biến tốc độ dòng chảy,… tùy thuộc vào ngành công nghiệp cụ thể
